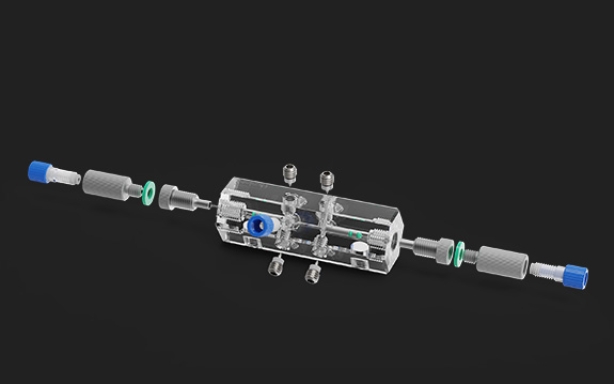

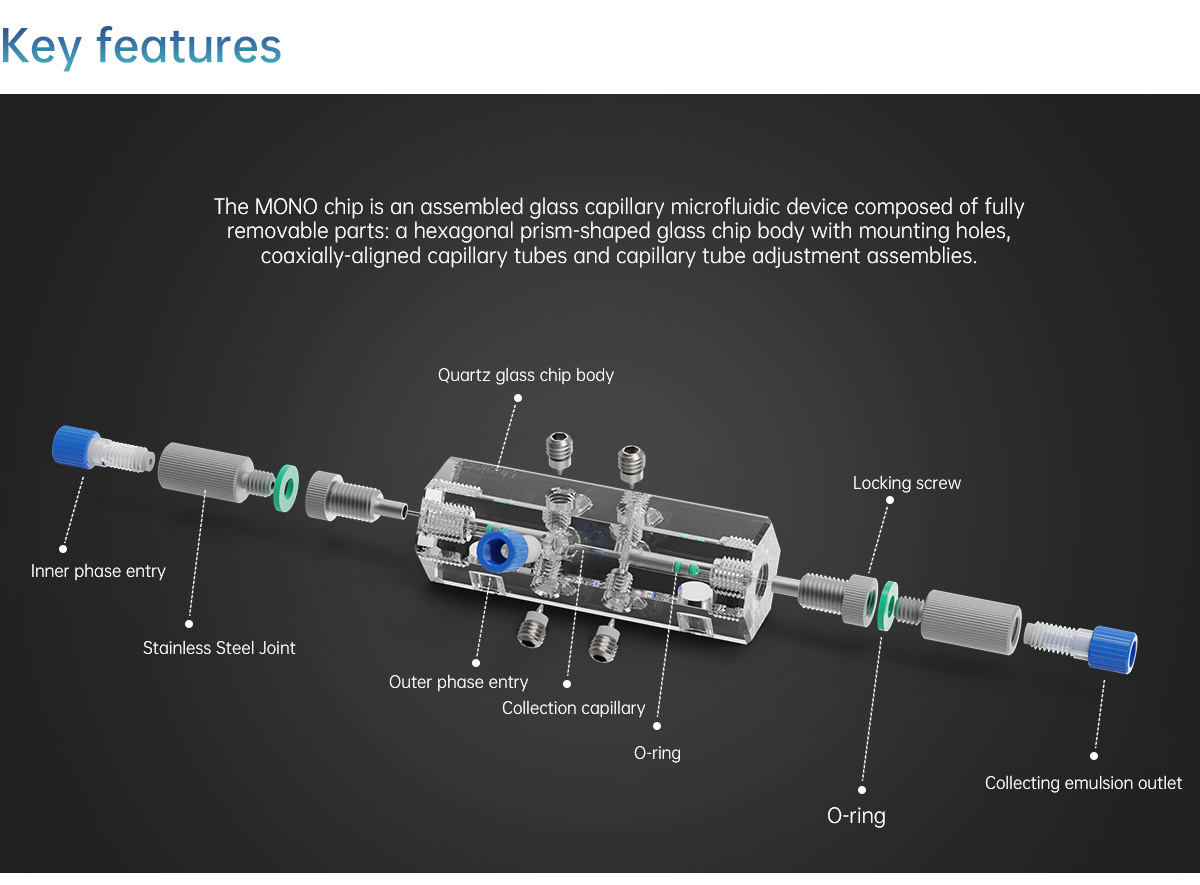

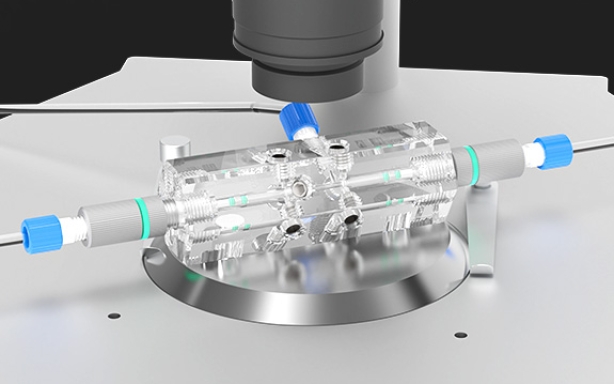

MONO-Glass Capillary Based Microfluidic Chip

• Innovative Design • High monodispersity • Coating-free

Scan to add WeChat











Chip mode	ALFA	MONO	DUAL
Chip body material	PMMA	quartz glass	quartz glass
Dimension (mm）	L55W25H25	L78W25H25	L78W25H25
Weight/g	34	85	85
Capillary material	borosilicate glass	borosilicate glass	borosilicate glass
Number of nested capillary	1	2	2
Tapered capillary orifice	20-500μm available	20-500μm available	20-500μm available
Capillary tube detachment, cleaning & replacement	esay	esay	esay
Orifice diameter at outlet	fixed，500 μm	100-580μm available	100-580μm available
Surface coating of capillary	hydrophobic/hydrophilic available	hydrophobic/hydrophilic available	hydrophobic/hydrophilic available
Functions & Applications	W/O emulsion O/W emulsion Hydrogel microsphere *Not suitable for organic solvents	W/O emulsion O/W emulsion Hydrogel microsphere Polymer microparticle	W/O emulsion O/W emulsion Hydrogel microsphere Polymer microparticle O/W/O emulsions W/O/W emulsions Microcapsules






Organic solvent compatibility	NO	YES	YES

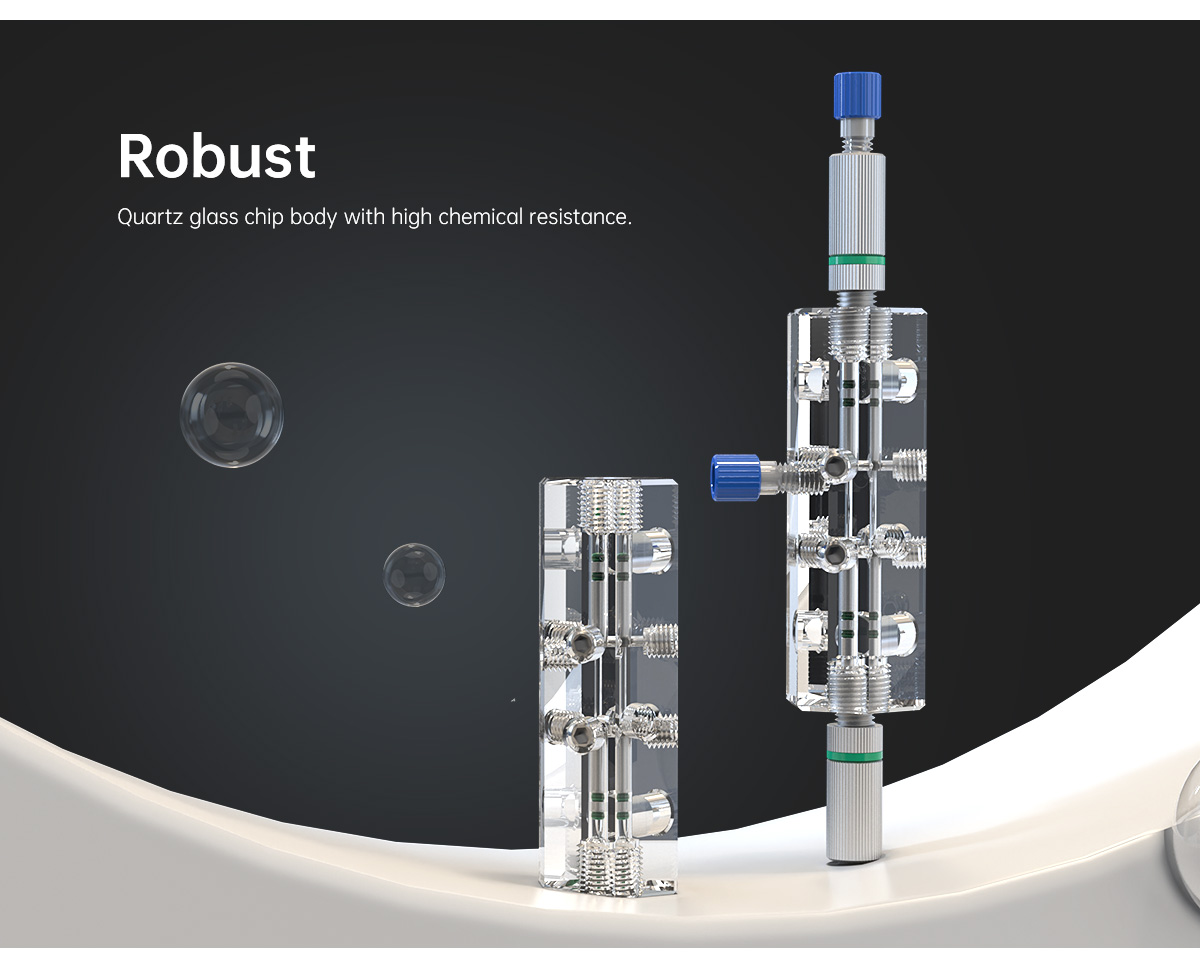

Feature	Beginner-friendly	Robust	Universal
