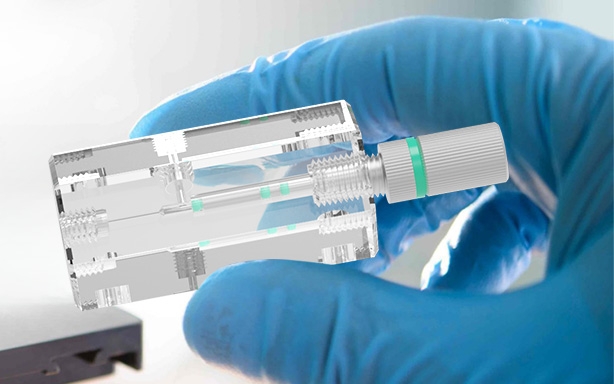

ALFA-Glass Capillary Based Microfluidic Chip

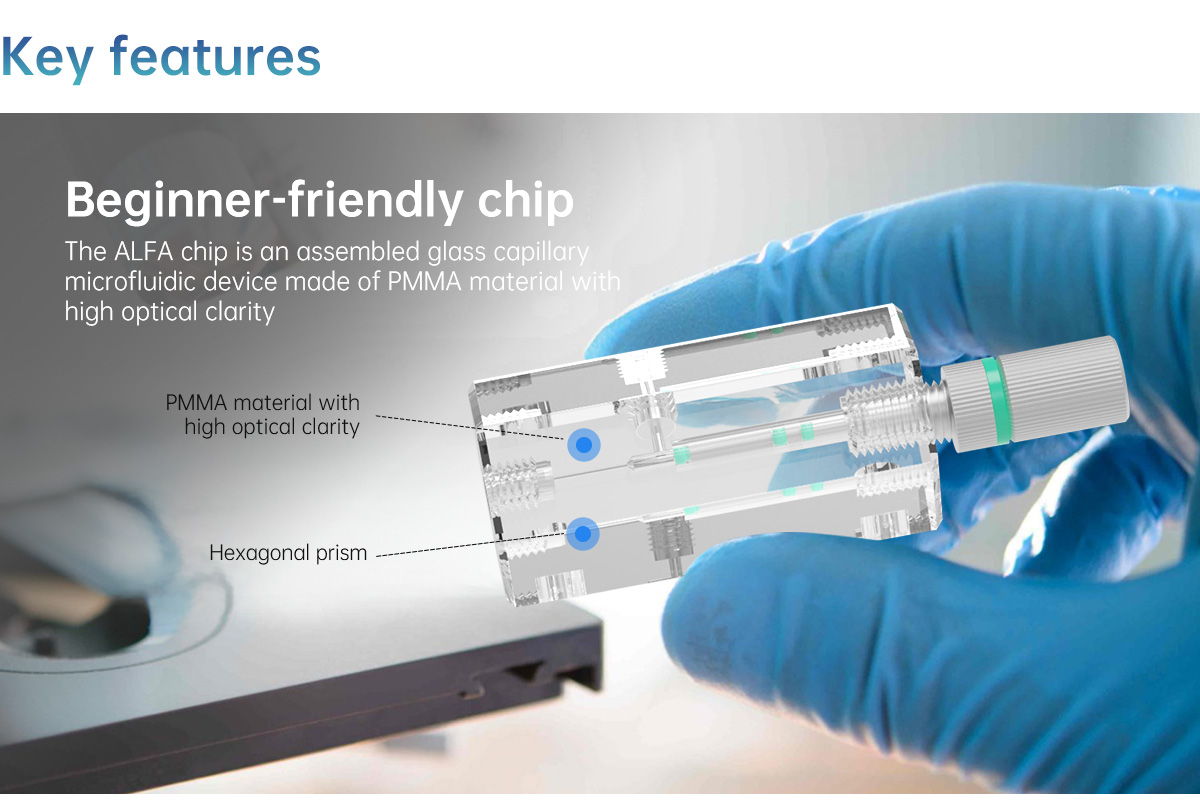

• Beginner-friendly chip • Easy-to-clean • Coating-free

Scan to add WeChat









Chip model	ALFA	MONO	DUAL
Chip body material	PMMA	quartz glass	quartz glass
Dimension (mm）	L55W25H25	L78W25H25	L78W25H25
Weight/g	34	85	85
Capillary material	borosilicate glass	borosilicate glass	borosilicate glass
Number of nested capillary	1	2	2
Tapered capillary orifice	20-500μm，可选	20-500μm，可选	20-500μm，可选

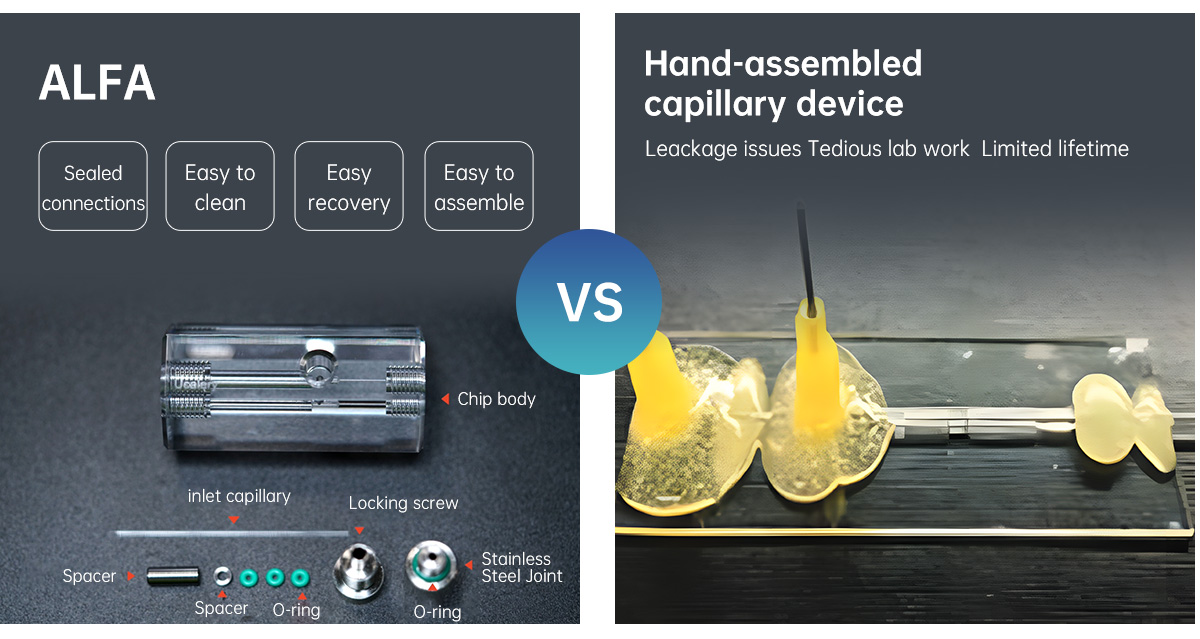

Capillary tube detachment, cleaning & replacement	easy	easy	easy
Orifice diameter at outlet	fixed，500 μm	100-580μm available	100-580μm available
Surface coating of capillar	hydrophobic/hydrophilic available	hydrophobic/hydrophilic available	hydrophobic/hydrophilic available

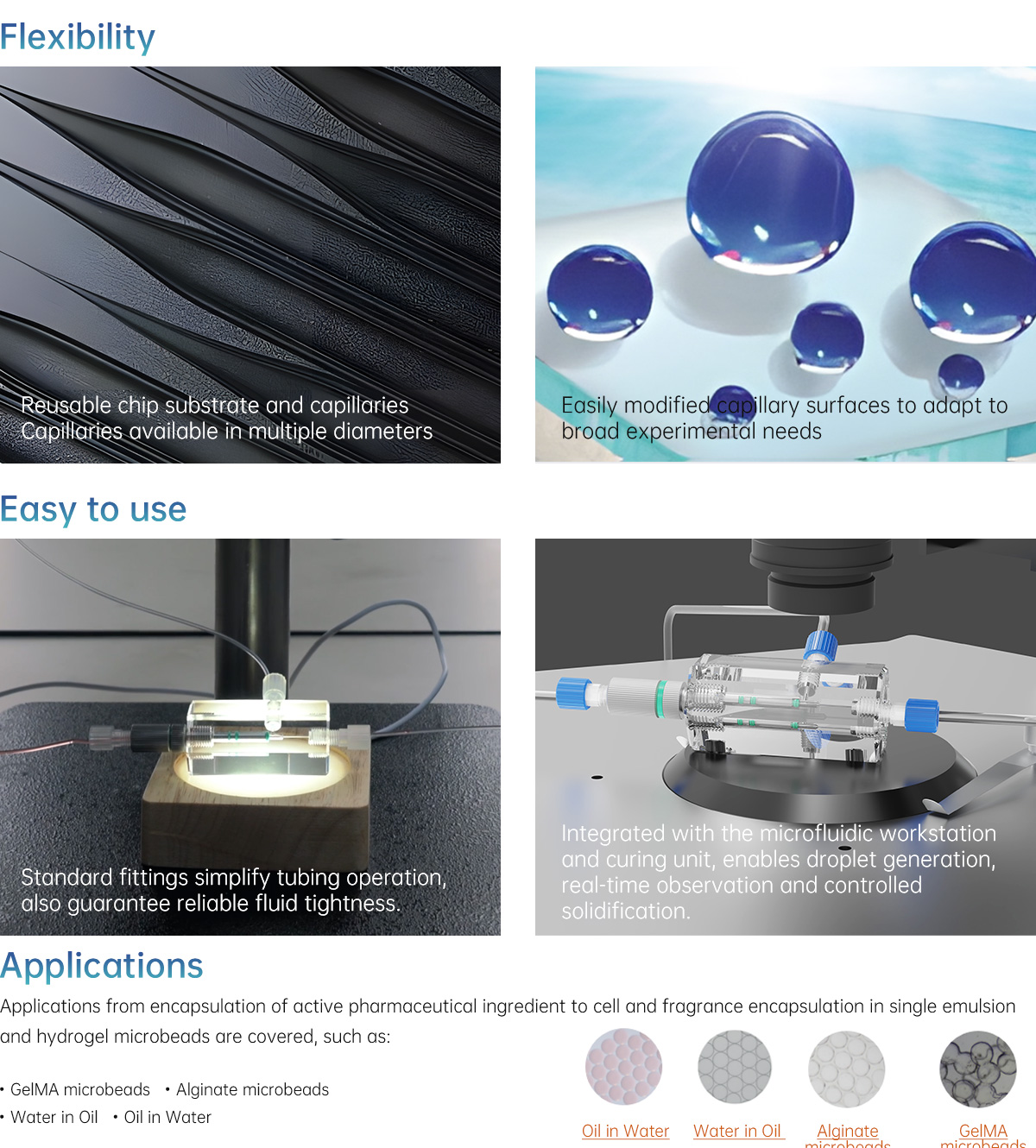

Functions & Application	W/O emulsion O/W emulsion Hydrogel microsphere *Not suitable for organic solvents	W/O emulsion O/W emulsion Hydrogel microsphere Polymer microparticle	W/O emulsion O/W emulsion Hydrogel microsphere Polymer microparticle O/W/O emulsions W/O/W emulsions Microcapsules

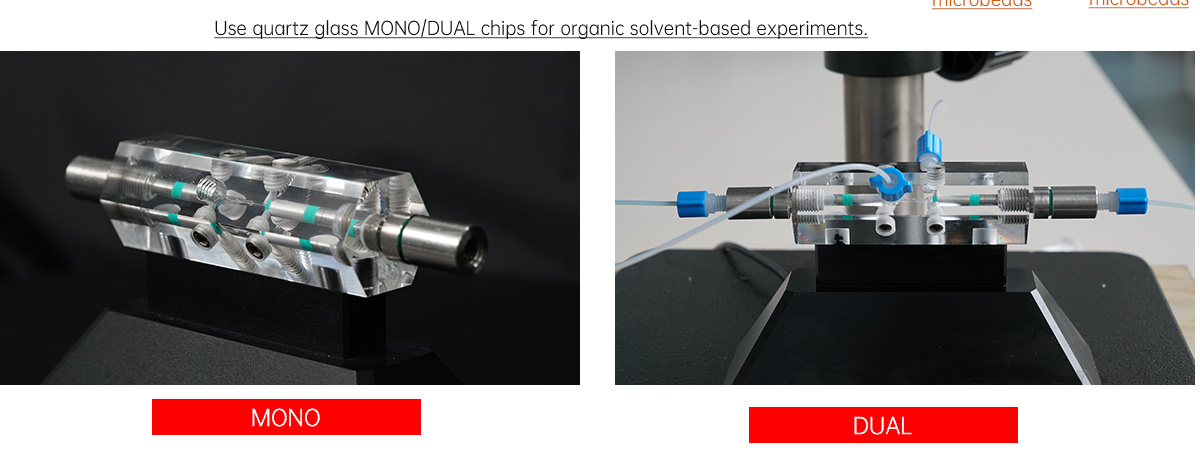

Organic solvent compatibility	NO	YES	YES
Feature	Beginner-friendly	Robust	Universal
